280376-1
TE Connectivity AMP Connectors
280376-1
TE Connectivity AMP Connectors

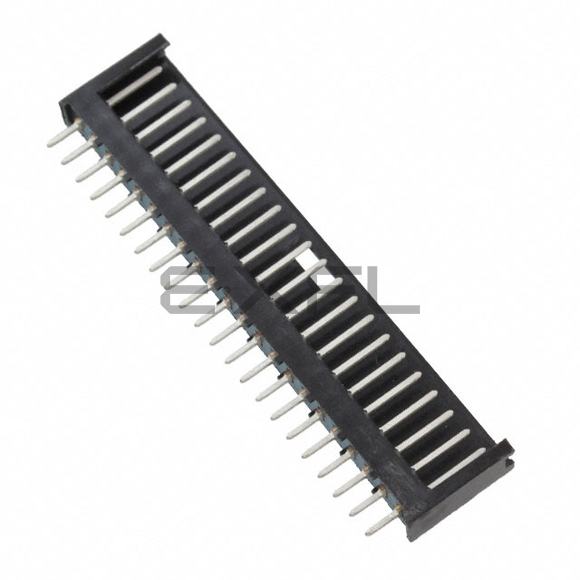

CONN HEADER VERT 22POS 2.54MM
Reference Price (USD)
1+
$1.78000
500+
$1.7622
1000+
$1.7444
1500+
$1.7266
2000+
$1.7088
2500+
$1.691
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
280376-1
$ 1.78
Product details
Product Attributes
- product status: Active
- connector type: Header
- contact type: Male Pin
- pitch - mating: 0.100" (2.54mm)
- number of positions: 22
- number of rows: 1
- row spacing - mating: -
- number of positions loaded: All
- style: Board to Board or Cable
- shrouding: Shrouded - 3 Wall
- mounting type: Through Hole
- termination: Solder
- fastening type: Detent Lock
- contact length - mating: 0.260" (6.60mm)
- contact length - post: 0.138" (3.50mm)
- overall contact length: 0.563" (14.30mm)
- insulation height: 0.496" (12.60mm)
- contact shape: Square
- contact finish - mating: Tin
- contact finish thickness - mating: 118.1µin (3.00µm)
- contact finish - post: Tin
- contact material: Brass
- insulation material: Thermoplastic
- features: -
- operating temperature: -40°C ~ 80°C
- ingress protection: -
- material flammability rating: UL94 V-0
- insulation color: Black
- current rating (amps): 3A
- voltage rating: 40V
