2-1761605-3
TE Connectivity AMP Connectors
2-1761605-3
TE Connectivity AMP Connectors

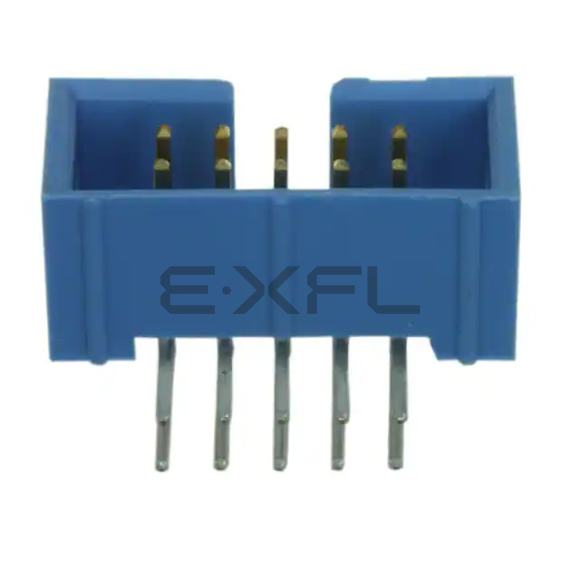

CONN HEADER R/A 10POS 2.54MM
Reference Price (USD)
1+
$7.60000
500+
$7.524
1000+
$7.448
1500+
$7.372
2000+
$7.296
2500+
$7.22
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
2-1761605-3
$ 7.60
Product details
Product Attributes
- product status: Active
- connector type: Header
- contact type: Male Pin
- pitch - mating: 0.100" (2.54mm)
- number of positions: 10
- number of rows: 2
- row spacing - mating: 0.100" (2.54mm)
- number of positions loaded: All
- style: Board to Cable/Wire
- shrouding: Shrouded - 4 Wall
- mounting type: Through Hole, Right Angle
- termination: Solder
- fastening type: Push-Pull
- contact length - mating: 0.240" (6.10mm)
- contact length - post: 0.102" (2.60mm)
- overall contact length: -
- insulation height: 0.350" (8.89mm)
- contact shape: Square
- contact finish - mating: Gold
- contact finish thickness - mating: 30.0µin (0.76µm)
- contact finish - post: Tin
- contact material: Phosphor Bronze
- insulation material: Polybutylene Terephthalate (PBT)
- features: Keying Slot
- operating temperature: -65°C ~ 105°C
- ingress protection: -
- material flammability rating: UL94 V-0
- insulation color: Blue
- current rating (amps): 1A per Contact
- voltage rating: 250VAC
