1-2842166-0
TE Connectivity AMP Connectors
1-2842166-0
TE Connectivity AMP Connectors

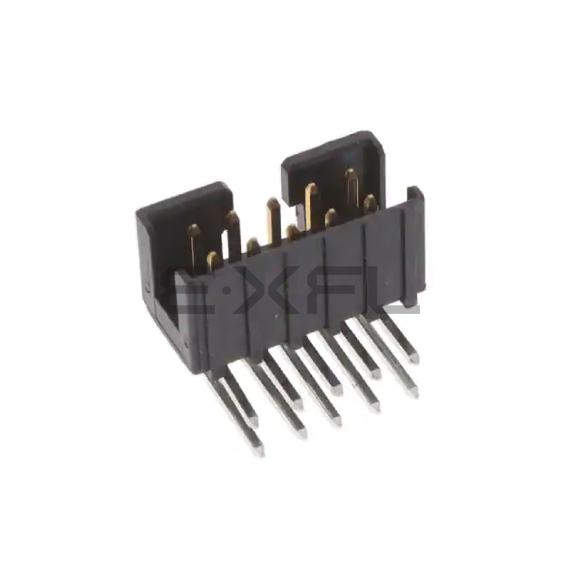

10P, AMPMODU 2MM, DOUBLE ROW SHR
Reference Price (USD)
1+
$1.76000
500+
$1.7424
1000+
$1.7248
1500+
$1.7072
2000+
$1.6896
2500+
$1.672
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
1-2842166-0
$ 1.76
Product details
Product Attributes
- product status: Active
- connector type: Header
- contact type: Male Pin
- pitch - mating: 0.079" (2.00mm)
- number of positions: 10
- number of rows: 2
- row spacing - mating: 0.079" (2.00mm)
- number of positions loaded: All
- style: Board to Board or Cable
- shrouding: Shrouded - 2 Wall
- mounting type: Through Hole, Right Angle
- termination: Solder
- fastening type: Detent Lock
- contact length - mating: 0.145" (3.70mm)
- contact length - post: 0.098" (2.50mm)
- overall contact length: -
- insulation height: 0.240" (6.10mm)
- contact shape: Square
- contact finish - mating: Gold
- contact finish thickness - mating: 3.94µin (0.100µm)
- contact finish - post: Tin
- contact material: Copper Alloy
- insulation material: Thermoplastic
- features: -
- operating temperature: -40°C ~ 125°C
- ingress protection: -
- material flammability rating: UL94 V-0
- insulation color: Black
- current rating (amps): 2A
- voltage rating: 125VAC/DC
