PEC33DFAN
Sullins Connector Solutions

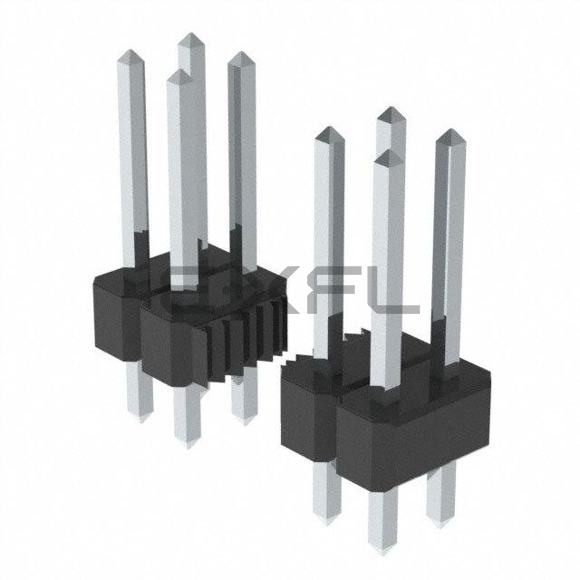

PEC33DFAN
Sullins Connector Solutions
CONN HEADER VERT 66POS 2.54MM
Reference Price (USD)
1+
$3.19000
500+
$3.1581
1000+
$3.1262
1500+
$3.0943
2000+
$3.0624
2500+
$3.0305
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
PEC33DFAN
$ 3.19
Product details
Product Attributes
- product status: Active
- connector type: Header, Breakaway
- contact type: Male Pin
- pitch - mating: 0.100" (2.54mm)
- number of positions: 66
- number of rows: 2
- row spacing - mating: 0.100" (2.54mm)
- number of positions loaded: All
- style: Board to Board or Cable
- shrouding: Unshrouded
- mounting type: Through Hole
- termination: Solder
- fastening type: Push-Pull
- contact length - mating: 0.318" (8.08mm)
- contact length - post: 0.120" (3.05mm)
- overall contact length: 0.538" (13.67mm)
- insulation height: 0.100" (2.54mm)
- contact shape: Square
- contact finish - mating: Tin
- contact finish thickness - mating: 100.0µin (2.54µm)
- contact finish - post: Tin
- contact material: Phosphor Bronze
- insulation material: Polybutylene Terephthalate (PBT)
- features: -
- operating temperature: -65°C ~ 125°C
- ingress protection: -
- material flammability rating: UL94 V-0
- insulation color: Black
- current rating (amps): 3A
- voltage rating: -
