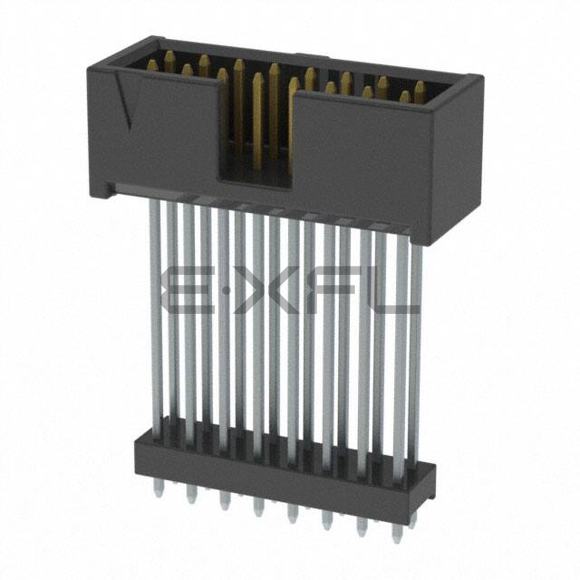

ZSS-108-07-L-D-1140
Samtec Inc.
ZSS-108-07-L-D-1140
Samtec Inc.
CONN HDR .100" 16POS
Reference Price (USD)
1+
$4.99000
500+
$4.9401
1000+
$4.8902
1500+
$4.8403
2000+
$4.7904
2500+
$4.7405
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
ZSS-108-07-L-D-1140
$ 4.99
Product details
Product Attributes
- product status: Active
- connector type: Header, Elevated
- contact type: Male Pin
- pitch - mating: 0.100" (2.54mm)
- number of positions: 16
- number of rows: 2
- row spacing - mating: 0.100" (2.54mm)
- number of positions loaded: All
- style: Board to Board or Cable
- shrouding: Shrouded - 4 Wall
- mounting type: Through Hole
- termination: Solder
- fastening type: Push-Pull
- contact length - mating: 0.250" (6.35mm)
- contact length - post: 0.090" (2.29mm)
- overall contact length: 1.230" (31.24mm)
- insulation height: 1.140" (28.96mm)
- contact shape: Square
- contact finish - mating: Gold
- contact finish thickness - mating: 10.0µin (0.25µm)
- contact finish - post: Tin
- contact material: Phosphor Bronze
- insulation material: Polyester, Glass Filled
- features: Keying Slot
- operating temperature: -55°C ~ 125°C
- ingress protection: -
- material flammability rating: UL94 V-0
- insulation color: Black
- current rating (amps): 3A
- voltage rating: -
