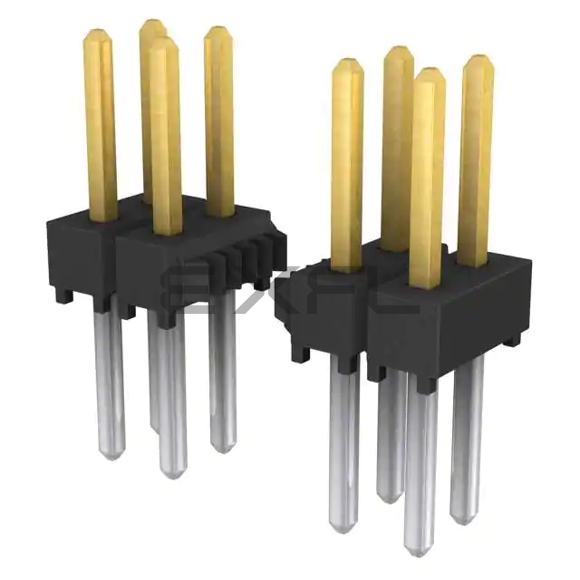

TSW-118-08-L-D
Samtec Inc.
TSW-118-08-L-D
Samtec Inc.
CONN HEADER VERT 36POS 2.54MM
Reference Price (USD)
1+
$2.84000
500+
$2.8116
1000+
$2.7832
1500+
$2.7548
2000+
$2.7264
2500+
$2.698
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
TSW-118-08-L-D
$ 2.84
Product details
Product Attributes
- product status: Active
- connector type: Header
- contact type: Male Pin
- pitch - mating: 0.100" (2.54mm)
- number of positions: 36
- number of rows: 2
- row spacing - mating: 0.100" (2.54mm)
- number of positions loaded: All
- style: Board to Board or Cable
- shrouding: Unshrouded
- mounting type: Through Hole
- termination: Solder
- fastening type: Push-Pull
- contact length - mating: 0.230" (5.84mm)
- contact length - post: 0.200" (5.08mm)
- overall contact length: 0.530" (13.46mm)
- insulation height: 0.100" (2.54mm)
- contact shape: Square
- contact finish - mating: Gold
- contact finish thickness - mating: 10.0µin (0.25µm)
- contact finish - post: Tin
- contact material: Phosphor Bronze
- insulation material: Polybutylene Terephthalate (PBT)
- features: -
- operating temperature: -55°C ~ 125°C
- ingress protection: -
- material flammability rating: UL94 V-0
- insulation color: Black
- current rating (amps): -
- voltage rating: -
