TMS-130-57-S-D
Samtec Inc.
TMS-130-57-S-D
Samtec Inc.

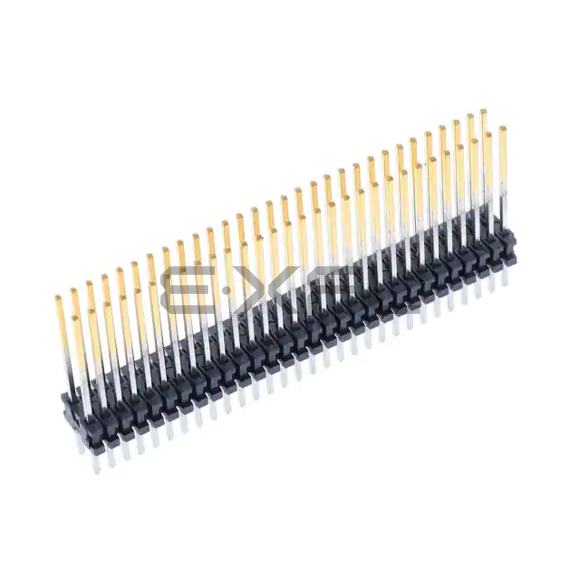

.050" (1.27MM) MICRO HEADER
Reference Price (USD)
1+
$15.75000
500+
$15.5925
1000+
$15.435
1500+
$15.2775
2000+
$15.12
2500+
$14.9625
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
TMS-130-57-S-D
$ 15.75
Product details
Product Attributes
- product status: Active
- connector type: Header
- contact type: Male Pin
- pitch - mating: 0.050" (1.27mm)
- number of positions: 60
- number of rows: 2
- row spacing - mating: 0.100" (2.54mm)
- number of positions loaded: All
- style: Board to Board
- shrouding: Unshrouded
- mounting type: Through Hole
- termination: Solder
- fastening type: Push-Pull
- contact length - mating: 0.430" (10.92mm)
- contact length - post: 0.120" (3.05mm)
- overall contact length: 0.650" (16.51mm)
- insulation height: 0.100" (2.54mm)
- contact shape: Square
- contact finish - mating: Gold
- contact finish thickness - mating: 30.0µin (0.76µm)
- contact finish - post: Tin
- contact material: Phosphor Bronze
- insulation material: Liquid Crystal Polymer (LCP)
- features: -
- operating temperature: -55°C ~ 125°C
- ingress protection: -
- material flammability rating: UL94 V-0
- insulation color: Black
- current rating (amps): 5A per Contact
- voltage rating: -
