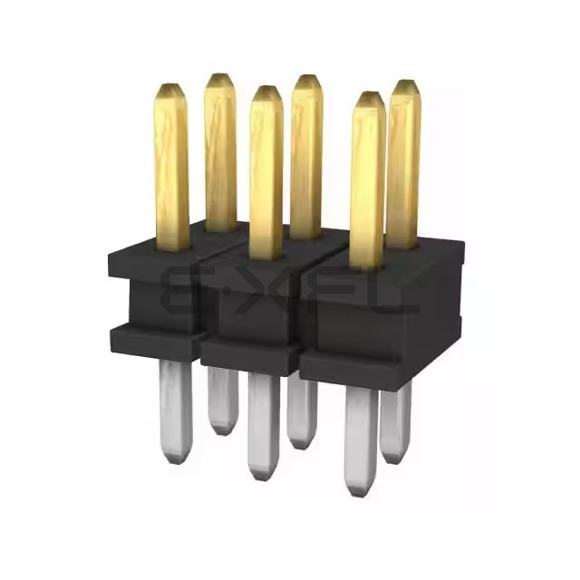

TMMH-103-04-S-D
Samtec Inc.
TMMH-103-04-S-D
Samtec Inc.
2MM LOW PROFILE STRIPS
Reference Price (USD)
1+
$1.87000
500+
$1.8513
1000+
$1.8326
1500+
$1.8139
2000+
$1.7952
2500+
$1.7765
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
TMMH-103-04-S-D
$ 1.87
Product details
Product Attributes
- product status: Active
- connector type: Header, Cuttable
- contact type: Male Pin
- pitch - mating: 0.079" (2.00mm)
- number of positions: 6
- number of rows: 2
- row spacing - mating: 0.079" (2.00mm)
- number of positions loaded: All
- style: Board to Board or Cable
- shrouding: Unshrouded
- mounting type: Through Hole
- termination: Solder
- fastening type: Push-Pull
- contact length - mating: 0.075" (1.90mm)
- contact length - post: 0.101" (2.57mm)
- overall contact length: 0.255" (6.48mm)
- insulation height: 0.079" (2.00mm)
- contact shape: Square
- contact finish - mating: Gold
- contact finish thickness - mating: 30.0µin (0.76µm)
- contact finish - post: Tin
- contact material: Phosphor Bronze
- insulation material: Liquid Crystal Polymer (LCP)
- features: -
- operating temperature: -55°C ~ 125°C
- ingress protection: -
- material flammability rating: UL94 V-0
- insulation color: Black
- current rating (amps): -
- voltage rating: -
