TMM-118-04-G-D
Samtec Inc.
TMM-118-04-G-D
Samtec Inc.

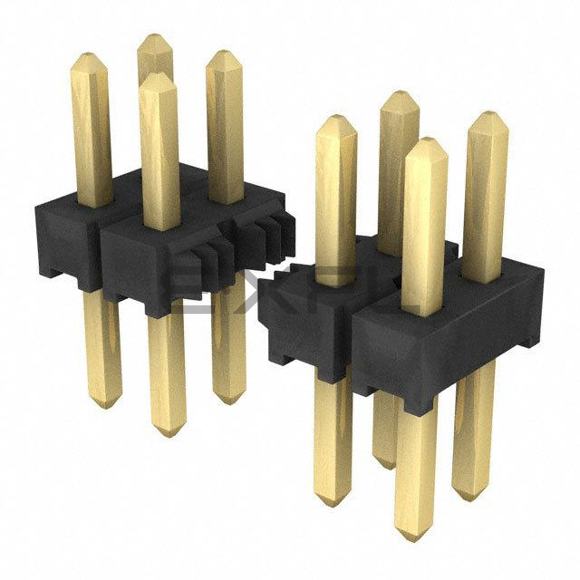

2MM TERMINAL STRIP
Reference Price (USD)
1+
$7.59000
500+
$7.5141
1000+
$7.4382
1500+
$7.3623
2000+
$7.2864
2500+
$7.2105
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
TMM-118-04-G-D
$ 7.59
Product details
Product Attributes
- product status: Active
- connector type: Header
- contact type: Male Pin
- pitch - mating: 0.079" (2.00mm)
- number of positions: 36
- number of rows: 2
- row spacing - mating: 0.079" (2.00mm)
- number of positions loaded: All
- style: Board to Board or Cable
- shrouding: Unshrouded
- mounting type: Through Hole
- termination: Solder
- fastening type: Push-Pull
- contact length - mating: 0.075" (1.90mm)
- contact length - post: 0.090" (2.29mm)
- overall contact length: 0.224" (5.69mm)
- insulation height: 0.059" (1.50mm)
- contact shape: Square
- contact finish - mating: Gold
- contact finish thickness - mating: 20.0µin (0.51µm)
- contact finish - post: Gold
- contact material: Phosphor Bronze
- insulation material: Liquid Crystal Polymer (LCP)
- features: -
- operating temperature: -55°C ~ 125°C
- ingress protection: -
- material flammability rating: -
- insulation color: Black
- current rating (amps): 3.2A per Contact
- voltage rating: -
