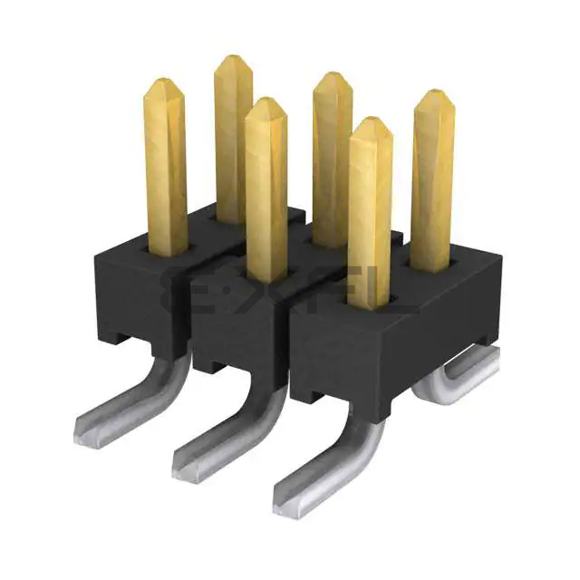

TMM-103-01-S-D-SM-P
Samtec Inc.
TMM-103-01-S-D-SM-P
Samtec Inc.
2MM TERMINAL STRIP
Reference Price (USD)
1+
$2.68000
500+
$2.6532
1000+
$2.6264
1500+
$2.5996
2000+
$2.5728
2500+
$2.546
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
TMM-103-01-S-D-SM-P
$ 2.68
Product details
Product Attributes
- product status: Active
- connector type: Header
- contact type: Male Pin
- pitch - mating: 0.079" (2.00mm)
- number of positions: 6
- number of rows: 2
- row spacing - mating: 0.079" (2.00mm)
- number of positions loaded: All
- style: Board to Board or Cable
- shrouding: Unshrouded
- mounting type: Surface Mount
- termination: Solder
- fastening type: Push-Pull
- contact length - mating: 0.126" (3.20mm)
- contact length - post: -
- overall contact length: -
- insulation height: 0.059" (1.50mm)
- contact shape: Square
- contact finish - mating: Gold
- contact finish thickness - mating: 30.0µin (0.76µm)
- contact finish - post: Tin
- contact material: Phosphor Bronze
- insulation material: Liquid Crystal Polymer (LCP)
- features: Pick and Place
- operating temperature: -55°C ~ 125°C
- ingress protection: -
- material flammability rating: UL94 V-0
- insulation color: Black
- current rating (amps): 3.2A per Contact
- voltage rating: -
