SHF-117-01-L-D-TH-LC
Samtec Inc.
SHF-117-01-L-D-TH-LC
Samtec Inc.

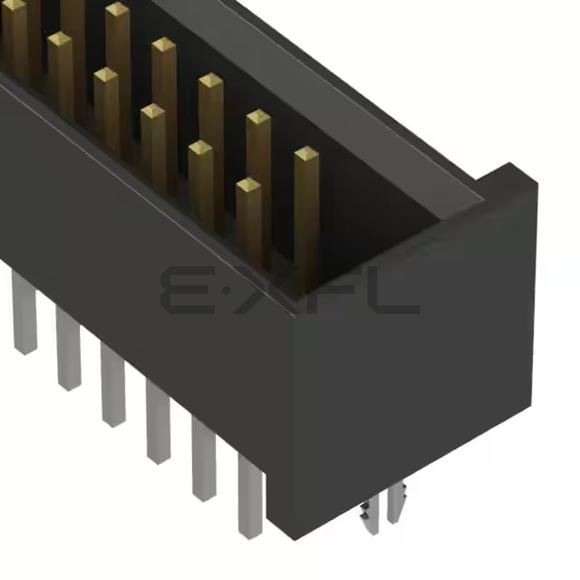

CONN HEADER VERT 34POS 1.27MM
Reference Price (USD)
1+
$7.38000
500+
$7.3062
1000+
$7.2324
1500+
$7.1586
2000+
$7.0848
2500+
$7.011
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
SHF-117-01-L-D-TH-LC
$ 7.38
Product details
Product Attributes
- product status: Active
- connector type: Header
- contact type: Male Pin
- pitch - mating: 0.050" (1.27mm)
- number of positions: 34
- number of rows: 2
- row spacing - mating: 0.050" (1.27mm)
- number of positions loaded: All
- style: Board to Cable/Wire
- shrouding: Shrouded - 4 Wall
- mounting type: Through Hole
- termination: Solder
- fastening type: Push-Pull
- contact length - mating: 0.120" (3.05mm)
- contact length - post: 0.075" (1.91mm)
- overall contact length: -
- insulation height: 0.210" (5.33mm)
- contact shape: Square
- contact finish - mating: Gold
- contact finish thickness - mating: 10.0µin (0.25µm)
- contact finish - post: Tin
- contact material: Phosphor Bronze
- insulation material: Liquid Crystal Polymer (LCP)
- features: Board Lock, Keying Slot
- operating temperature: -55°C ~ 125°C
- ingress protection: -
- material flammability rating: UL94 V-0
- insulation color: Black
- current rating (amps): 3A
- voltage rating: -
