IPBT-115-H1-T-D-GP
Samtec Inc.
IPBT-115-H1-T-D-GP
Samtec Inc.

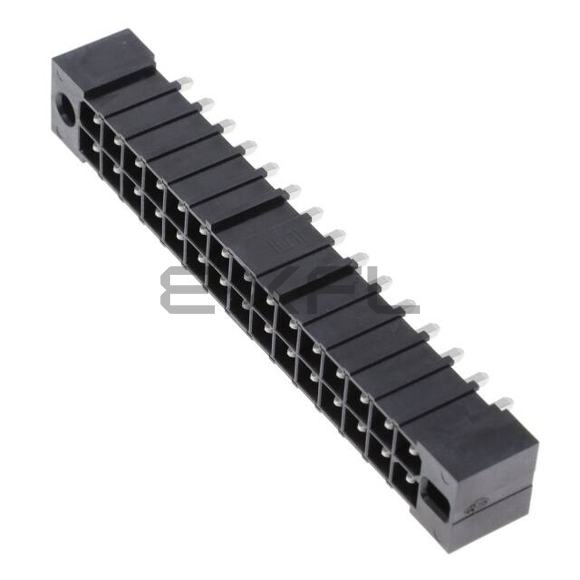

CONN HEADER VERT 30POS 4.20MM
Reference Price (USD)
1+
$7.74000
500+
$7.6626
1000+
$7.5852
1500+
$7.5078
2000+
$7.4304
2500+
$7.353
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
IPBT-115-H1-T-D-GP
$ 7.74
Product details
Product Attributes
- product status: Active
- connector type: Header
- contact type: Male Pin
- pitch - mating: 0.165" (4.20mm)
- number of positions: 30
- number of rows: 2
- row spacing - mating: 0.165" (4.20mm)
- number of positions loaded: All
- style: Board to Board or Cable
- shrouding: Shrouded - 4 Wall
- mounting type: Through Hole
- termination: Solder
- fastening type: Locking Ramp
- contact length - mating: 0.260" (6.60mm)
- contact length - post: 0.130" (3.30mm)
- overall contact length: 0.510" (12.95mm)
- insulation height: 0.380" (9.65mm)
- contact shape: Square
- contact finish - mating: Tin
- contact finish thickness - mating: -
- contact finish - post: Tin
- contact material: Copper Alloy
- insulation material: Liquid Crystal Polymer (LCP)
- features: Mating Flange
- operating temperature: -55°C ~ 105°C
- ingress protection: -
- material flammability rating: UL94 V-0
- insulation color: Black
- current rating (amps): -
- voltage rating: 400VAC, 565VDC
