HTSW-136-21-LM-S
Samtec Inc.
HTSW-136-21-LM-S
Samtec Inc.

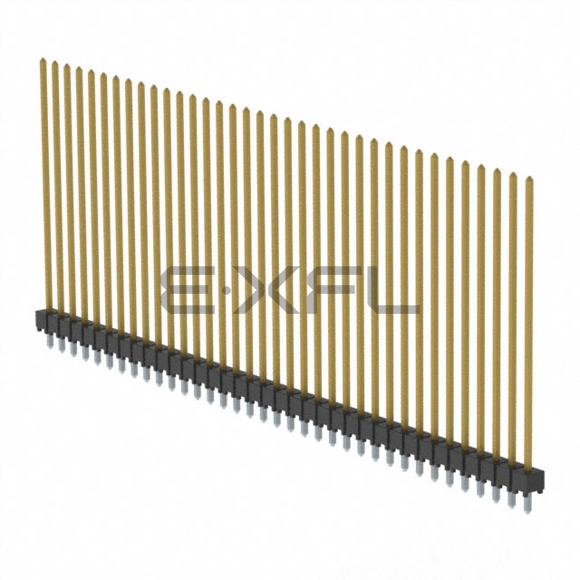

CONN HEADER VERT 36POS 2.54MM
Reference Price (USD)
1+
$6.70000
500+
$6.633
1000+
$6.566
1500+
$6.499
2000+
$6.432
2500+
$6.365
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
HTSW-136-21-LM-S
$ 6.70
Product details
Product Attributes
- product status: Active
- connector type: Header
- contact type: Male Pin
- pitch - mating: 0.100" (2.54mm)
- number of positions: 36
- number of rows: 1
- row spacing - mating: -
- number of positions loaded: All
- style: Board to Board or Cable
- shrouding: Unshrouded
- mounting type: Through Hole
- termination: Solder
- fastening type: Push-Pull
- contact length - mating: 1.220" (30.99mm)
- contact length - post: 0.110" (2.79mm)
- overall contact length: 1.430" (36.32mm)
- insulation height: 0.100" (2.54mm)
- contact shape: Square
- contact finish - mating: Gold
- contact finish thickness - mating: 10.0µin (0.25µm)
- contact finish - post: Tin
- contact material: Phosphor Bronze
- insulation material: Liquid Crystal Polymer (LCP)
- features: -
- operating temperature: -55°C ~ 125°C
- ingress protection: -
- material flammability rating: UL94 V-0
- insulation color: Natural
- current rating (amps): Varies by Wire Gauge
- voltage rating: -
