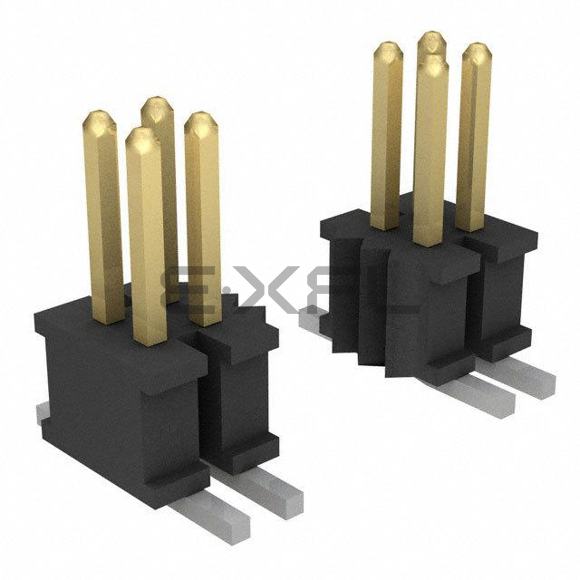

FTSH-116-01-F-DV-P-TR
Samtec Inc.
FTSH-116-01-F-DV-P-TR
Samtec Inc.
CONN HEADER SMD 32POS 1.27MM
Reference Price (USD)
1+
$4.98960
500+
$4.939704
1000+
$4.889808
1500+
$4.839912
2000+
$4.790016
2500+
$4.74012
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
FTSH-116-01-F-DV-P-TR
$ 4.99
Product details
Product Attributes
- product status: Active
- connector type: Header, Cuttable
- contact type: Male Pin
- pitch - mating: 0.050" (1.27mm)
- number of positions: 32
- number of rows: 2
- row spacing - mating: 0.050" (1.27mm)
- number of positions loaded: All
- style: Board to Board or Cable
- shrouding: Unshrouded
- mounting type: Surface Mount
- termination: Solder
- fastening type: Push-Pull
- contact length - mating: 0.120" (3.05mm)
- contact length - post: -
- overall contact length: -
- insulation height: 0.099" (2.51mm)
- contact shape: Square
- contact finish - mating: Gold
- contact finish thickness - mating: 3.00µin (0.076µm)
- contact finish - post: Tin
- contact material: Phosphor Bronze
- insulation material: Liquid Crystal Polymer (LCP)
- features: Pick and Place
- operating temperature: -55°C ~ 125°C
- ingress protection: -
- material flammability rating: UL94 V-0
- insulation color: Black
- current rating (amps): 3.4A per Contact
- voltage rating: -
