FTSH-113-01-L-DV-K-P
Samtec Inc.
FTSH-113-01-L-DV-K-P
Samtec Inc.

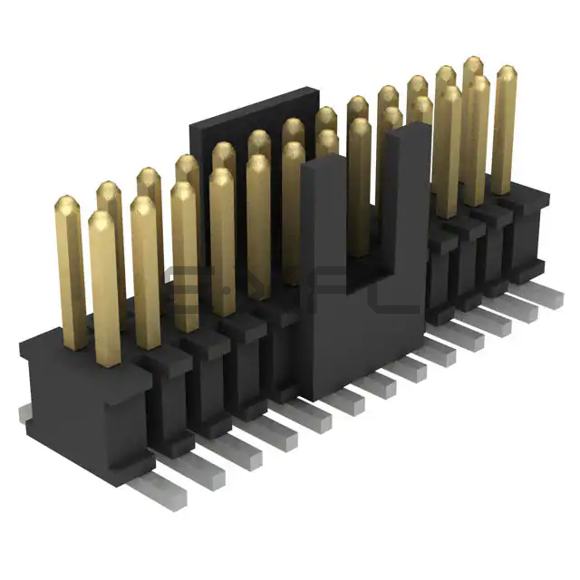

CONN HEADER SMD 26POS 1.27MM
Reference Price (USD)
1+
$8.84000
500+
$8.7516
1000+
$8.6632
1500+
$8.5748
2000+
$8.4864
2500+
$8.398
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
FTSH-113-01-L-DV-K-P
$ 8.84
Product details
Product Attributes
- product status: Active
- connector type: Header, Cuttable
- contact type: Male Pin
- pitch - mating: 0.050" (1.27mm)
- number of positions: 26
- number of rows: 2
- row spacing - mating: 0.050" (1.27mm)
- number of positions loaded: All
- style: Board to Board or Cable
- shrouding: Unshrouded
- mounting type: Surface Mount
- termination: Solder
- fastening type: Push-Pull
- contact length - mating: 0.120" (3.05mm)
- contact length - post: -
- overall contact length: -
- insulation height: 0.099" (2.51mm)
- contact shape: Square
- contact finish - mating: Gold
- contact finish thickness - mating: 10.0µin (0.25µm)
- contact finish - post: Tin
- contact material: Phosphor Bronze
- insulation material: Liquid Crystal Polymer (LCP)
- features: Keying Shroud, Pick and Place
- operating temperature: -55°C ~ 125°C
- ingress protection: -
- material flammability rating: UL94 V-0
- insulation color: Black
- current rating (amps): 3.4A per Contact
- voltage rating: -
