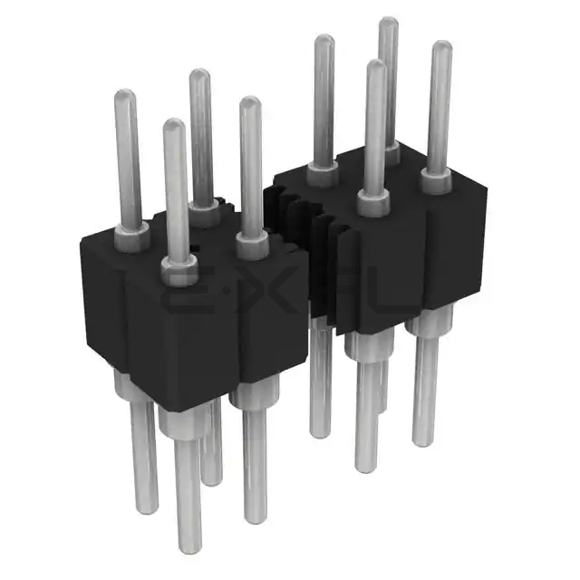

451-10-242-00-005101

Product details

Product Attributes

• product status: Active
• connector type: Header
• contact type: Male Pin
• pitch - mating: 0.100" (2.54mm)
• number of positions: 42
• number of rows: 2
• row spacing - mating: 0.100" (2.54mm)
• number of positions loaded: All
• style: Board to Board
• shrouding: Unshrouded
• mounting type: Through Hole
• termination: Solder
• fastening type: Push-Pull
• contact length - mating: 0.118" (3.00mm)
• contact length - post: 0.126" (3.20mm)
• overall contact length: 0.846" (21.50mm)
• insulation height: 0.110" (2.79mm)
• contact shape: Circular
• contact finish - mating: Gold
• contact finish thickness - mating: 10.0µin (0.25µm)
• contact finish - post: Gold
• contact material: Brass
• insulation material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
• features: -
• operating temperature: -55°C ~ 125°C
• ingress protection: -
• material flammability rating: UL94 V-0
• insulation color: Black
• current rating (amps): 3A
• voltage rating: 150VDC
